Laravel BrainVisualize your request lifecycle

What is Laravel Brain? ​

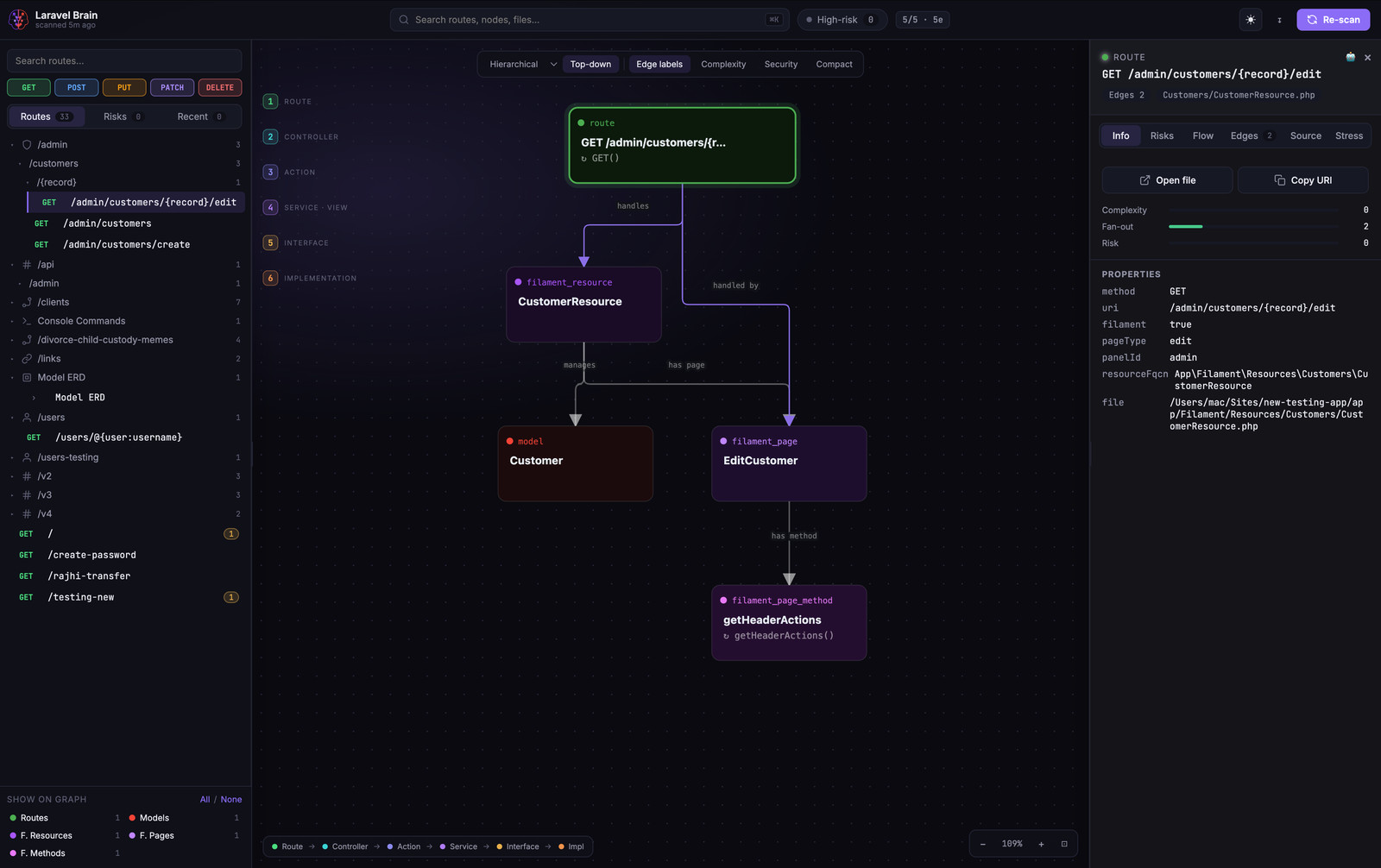

Laravel Brain is a zero-config developer tool that analyzes your Laravel codebase and renders an interactive node graph of your application's architecture. It traces every route through its controller, services, repositories, models, jobs, events, Artisan commands, scheduled tasks, broadcast channels, and Filament panels — giving you a bird's-eye view of the entire application without reading a single line of code.

The scan writes JSON graph files to storage/app/laravel-brain/. The viewer is served at /_laravel-brain entirely through your existing Laravel routes — no separate server process needed.

Features ​

• Full lifecycle tracing — Follows every route from HTTP verb → controller → service → repository → model → events/jobs
• Event listener discovery — Finds listeners registered by convention, via EventServiceProvider::$listen/$subscribe, or #[AsEventListener] attributes, and links them to the events they handle
• Unresolved dispatch detection — Flags a job/event dispatch that can't be resolved statically (a variable or factory result) instead of silently showing "no impact"; recognizes custom dispatch helper functions too
• Filament PHP support — Discovers panels, resources, pages, widgets, and relation managers; traces call chains from Filament page methods the same way controller actions are traced
• Artisan command discovery — Maps class-based commands, closure commands from routes/console.php, and Kernel-registered commands
• Scheduler tracing — Lists every scheduled task (command, job, call) with the time it runs, its timezone, and its overlap/one-server guards
• Broadcast channel mapping — Discovers class-based and closure channels from routes/channels.php
• Broadcasting — Reads ShouldBroadcast/broadcastOn() from each event and draws an edge to the channel(s) it broadcasts on, with the alias, queue, and payload shape in the event's detail panel
• DB query tracing — Surfaces Eloquent and raw queries per method
• Outgoing HTTP detection — Flags Laravel HTTP client, Guzzle, curl, and file_get_contents calls that leave the application, with host, method, timeout and retry — including requests built in one class and sent from another
• Cache operation tracing — Surfaces Cache:: facade and cache() helper calls per method, split into read / write / invalidate / lock, with the key (literal or constructed — a computed one is labelled, never guessed), plus tags, store and TTL where declared
• Fat-class detection — Flags controllers and services with more than 300 lines or 10 methods
• Cyclomatic complexity — Highlights hotspots by complexity tier (Low / Moderate / High / Critical)
• Interactive graph — Dark/light theme, accent-colored nodes, and interactive edges
• Per-route tabs — Each route gets its own isolated subgraph tab
• Middleware mapping — Shows which middleware guards each route
• Model relationships — Displays hasMany, belongsTo, and other Eloquent relations
• Table statistics — Row count (estimated or exact) and table/index size for every model's table, read live from the database
• Database schema — Real columns, indexes, and foreign keys read from the database catalogue rather than migrations, flagging a foreign key with no covering index
• Morph map aliases — Shows the alias Relation::morphMap() gives each model — the value that actually lands in *_type columns — and flags a model an enforced map leaves out
• Macro detection — Finds methods the application adds to existing classes via Macroable::macro()/::mixin() (Filament's own Macroable included) and draws them as their own node kind, so a call like $table->money() isn't a dead end when you go looking for where it came from
• Transaction boundaries — Draws a dashed boundary around every node that runs inside a DB::transaction() closure (or a manual begin/commit range), with a rollback path in a catch block boundaried separately
• Job chains & batches — Draws a boundary around jobs dispatched together via Bus::chain()/Bus::batch()/withChain(), with arrows through a chain in its run order
• Event choreography — A dedicated Events tab traces listener cascades — a listener that fires further events, not just the one hop from dispatch to handler — and flags events with no listener at all
• Job lifecycle — Shows a job's attempts, timeout, backoff, uniqueness, batching, after-commit dispatch, and queue middleware in its detail panel
• Deferred provider diagnostics — Flags a deferred service provider that never boots, a provides() key nothing backs, or the legacy $defer property the framework no longer reads
• Reachability inventory — An inventory of every entry point the application has (routes, commands, schedules, channels, listeners, Filament panels) and the classes nothing traced reaches from one — off by default, since the pass can cost as much as the rest of the scan combined
• laravel/ai agent tracing — Puts laravel/ai agents and the tools they expose to the model on the graph, with a standalone tab so an agent nothing else reaches is still visible
• File history & diffs — See who last committed a file and what changed: a side-by-side diff against the previous revision, right in the source viewer, with a commit-hash chip linking out to GitHub, GitLab, or Bitbucket when a remote is configured
• Riskiest files — Files ranked by recent commit frequency × their single most complex method — the "code as a crime scene" hotspot signal (complexity alone says a method is hard to read; churn alone says a file is popular; together they say where the next bug is likeliest)
• Observer discovery — Finds Eloquent observers (#[ObservedBy], Model::observe(), or booted()) and links them to the models they observe
• Policy resolution — Resolves each model's authorization policy (explicit map, #[UsePolicy] attribute, or naming convention) and links it in the graph
• View composition mapping — Traces @include, @extends, @component, @each, and <x-...> components as view → view edges, so a shared partial shows every entry point it reaches
• API resource edges — Traces UserResource::make()/::collection()/new and nested resource composition as edges, so a changed resource shows every controller and resource that uses it
• Method flowcharts — See internal flow as a step-by-step diagram with a large modal popup view
• Sequence diagrams — Route nodes render an SVG sequence diagram (exportable as PNG or Mermaid) showing the full actor chain
• Source viewer — Read the actual source file inline or in a focused popup
• Export — Export any graph as PNG or Mermaid diagram
• Multiple layouts — Hierarchical (dagre), force-directed (cose-bilkent), breadth-first, circle, grid
• Watch mode — Auto-rescans on PHP file changes; a change confined to app/ re-traces only the affected controllers and merges the result into the previous graph instead of rebuilding it from scratch
• Route stress test — From a selected route node, run concurrent HTTP load against that endpoint (via laramint/laravel-stress): configure request count, concurrency, headers, body, and timeout; see timing percentiles (min/avg/p50/p95/p99/max), throughput, and status distribution in the sidebar. While a run is active, the graph highlights the route and animates packets along the request path
• AI context export — Copy a deterministic, token-optimized context snapshot for any node to your clipboard with one click (🤖 button in the sidebar). Also available as brain:export-context Artisan command and GET /_laravel-brain/api/context API endpoint. Context includes call chain, complexity hotspots, DB operations, cache operations, source snippets, and all backend/frontend packages — always reproducible from the same scan data
• AI rules generation — Generate ready-to-use context files for AI coding assistants (Claude Code, Cursor, Windsurf, GitHub Copilot, JetBrains Junie, Aider, AGENTS.md, OpenAI Codex) directly from the UI (Export → Generate AI Rules) or via brain:generate-rules. Each file is populated with your project's real architecture, routes, packages, and code-health data

Requirements ​

• PHP 8.0+
• Laravel 9, 10, 11, 12, or 13
• Composer

Contributing ​

Pull requests are welcome. For major changes, please open an issue first to discuss what you'd like to change.

git clone https://github.com/LaraMint/laravel-brain
cd laravel-brain
composer install
cd frontend && npm install && npm run dev

Tests:

composer test

License ​

Laravel Brain is open-sourced software released under the MIT license.
